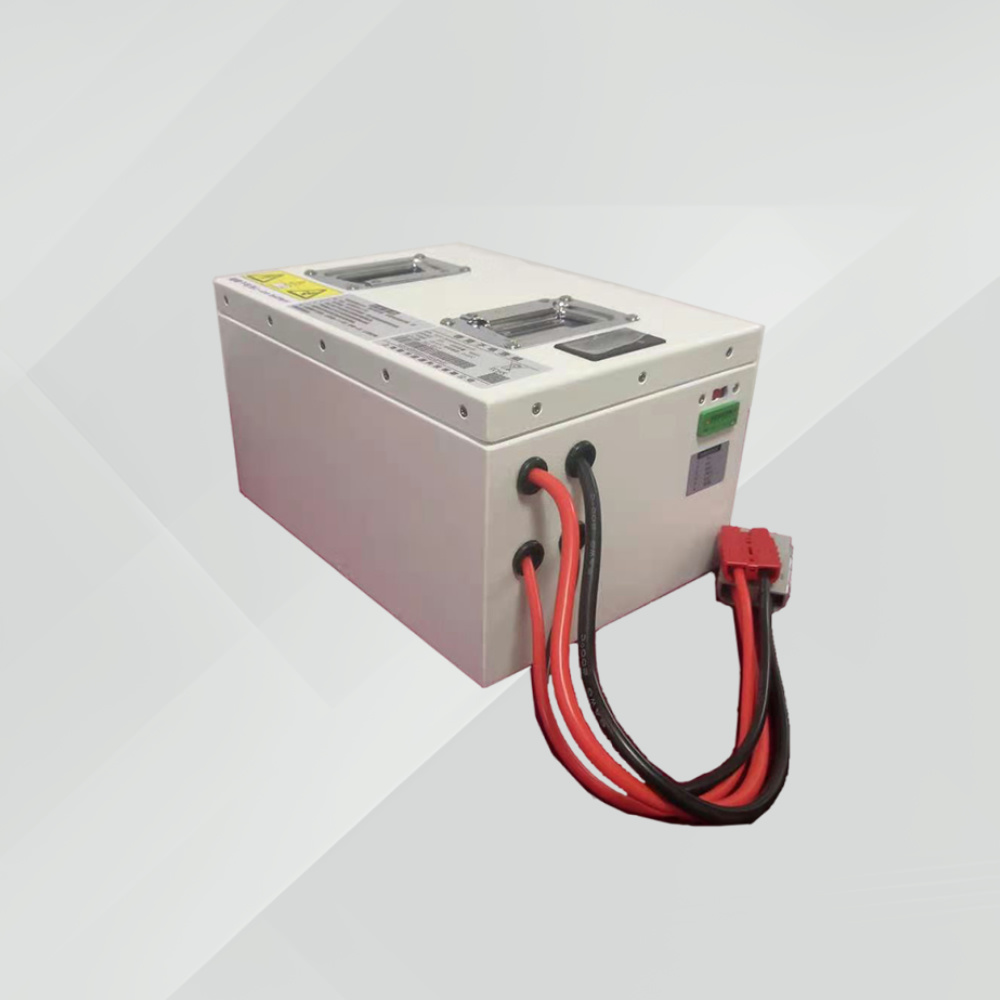

Li Ion NCM Battery Pack 24V60AH For RGV

Product Name: Li-Ion NCM Battery Pack 24V60AH For RGV

Technical Parameters

Parameter	Value
Cell Chemistry	NCM
Nominal Voltage(V)	24
Nominal Capacity(Ah)	60
Max Charge Current(A)	40
Max Discharge Current(A)	40
Communication Protocl	RS485-MODBUS RTU
Dimension(mm)	33022095
Weight(KGS)	10

Description

Other Optional Specification

Cell Chemistry	Nominal Voltage(V)	Nominal Capacity(AH)	Charge			Discharge			Communication	Dimensions (mm)			Weight (KGS)
			Maximum current (A)	Maximum voltage(V)	Temperature range	Maximum Current (A)	Minimum Voltage (V)	Temperature range		long	Width	high
LFP	24	60	60	28.8	0℃~55℃	50	22.4	-20℃~60℃	RS485-ASCII	370	220	180	13
LFP	24	60	60	28.8	0℃~55℃	50	22.4	-20℃~60℃	RS485-SC	323	210	160	14
LFP	24	60	100	28.8	0℃~55℃	50	20	-20℃~60℃	RS485-ASCII	365	200	160	13
NMC/NCM	24	60	40	29.4	0℃~55℃	40	17.5	-20℃~60℃	RS485-MODBUS RTU	330	220	95	10
NMC/NCM	24	60	40	29.4	0℃~55℃	40	17.5	-20℃~60℃	RS485-MODBUS RTU	300	200	80	9
LFP	24	60	50	28.8	0℃~55℃	50	20	-20℃~60℃	RS485-SC	329	310	120	12
LFP	24	60	50	28.8	0℃~55℃	50	20	-20℃~60℃	RS485-SC	329	310	120	12
LFP	24	60	60	28.8	0℃~55℃	60	20	-20℃~60℃	RS485-ASCII	300	200	180	13
NMC/NCM	24	60	30	29.4	-25℃~55℃	50	17.5	-25℃~60℃	RS485-SC	329	310	120	8
